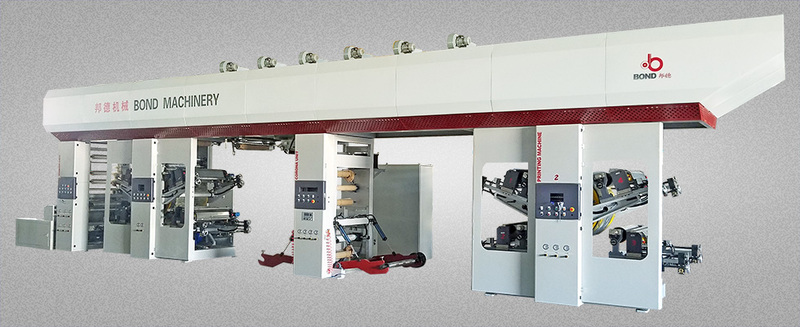

CI flexo printing machine
CI flexo printing machine
- Detail
- Parameters
1. Model No.:BDP-CI4-1300B
2. Name: CI flexo printing machine(Roll to roll continuous printing)
3. Function:
Flexo printing machine for company logo, product description and beautiful design.
4. Application: Bags for chemical, fertilize, cement, rice, sugar, aquatic products, pet food
5. Suitable for: PP&HDPE woven fabrics ,non-woven fabric ,paper etc
6. Features:
Central drum surrounded by numbers of printing station to have central impress printing
Stable tension, simple structure
Better printing accuracy, less color difference, richer color and shading
Roll to roll continuous printing
Image printing on pp woven bags
7. Technical parameters:
Max. Width of substrates roll (mm) | 1300 |
Max. Printing width (mm) | 1200 |
Max. Speed (m/min) | 20-120 |
Print plate thickness (mm) | 3-7(optional) |
Power (kw) | 50 |
Dimension (L*W*H) (m) | 12.5*4.2*4.5 |
Note: special size can be customized. Single side printing 4-6 color or both sides printing 8-12 color available.
